Rako WSR-DMX
Rako WSR-DMX
Rako WSR-DMX

Rako

Rako WSR-DMX

SKU WSR-DMX

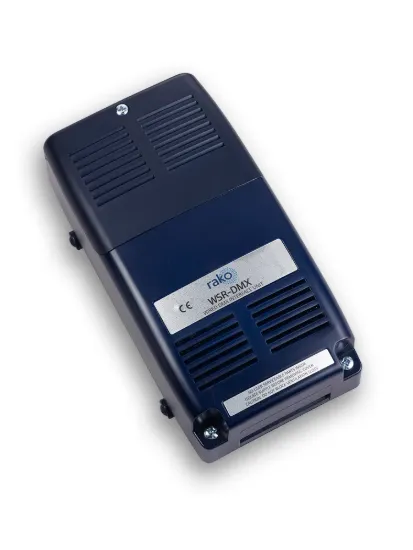

The Rako WSR-DMX is a wired 15-channel DMX controller for Rako wired (CAT5 / Rakom) systems, connecting DMX fittings such as RGBW lights and fibre optics. It uses the first 15 channels of DMX512 and drives up to 32 DMX devices, with 16 scenes and colour-wheel control. A power supply is included. The RSR-DMX is the wireless version.

Manufacturer: Rako
£324.00 inc VAT

Key features

Wired
  • DMX control from a Rako system
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WSR-DMX

Uses the first 15 channels of DMX512 and drives up to 32 DMX devices, with 16 scenes and colour-wheel control

DMX

Takes Rako scene commands and sends them as DMX for fittings that need it.

Wired

Sits on the wired Rako network, so one keypad can run several modules on that floor.

Keypad scenes

The plate on the wall is everyday control. With a Hub, the same scenes also run from the Rako app.

What the Rako WSR-DMX is

The Rako WSR-DMX is a 15-channel DMX controller for Rako wired networks. The RSR-DMX is its wireless counterpart, and the WSR-DLI is the wired controller for DALI.

Where it sits in a Rako system

It connects to the Rako wired (CAT5 / Rakom) network by RJ11, cabled back to a RAK-LINK or RAK-STAR, and is controlled from wired keypads such as the WK-EOS-6. It is configured in RASOFT Pro; a WK-HUB adds app and voice control. See all Rako wired modules.

Ratings and limits

  • 15 channels, using the first 15 channels of DMX512
  • Up to 32 DMX devices
  • DMX cable run: up to 300m
  • 16 scenes; colour-wheel control

Power and connection

It runs from 12-15V DC, with the power supply included. The wired network connects by RJ11 or Krone punch-down; DMX connects by screw terminal or RJ45 socket. It communicates over CAN and DMX. Rako's WSR-DMX instruction manual covers installation.

Fitting

It measures 190 x 105 x 66mm, weighs 280g and operates from +2°C to +40°C.

Questions

How many DMX devices can the Rako WSR-DMX control?

Up to 32, across 15 DMX channels.

Is a power supply included with the WSR-DMX?

Yes, a 12-15V DC supply.

What is the difference between the WSR-DMX and the RSR-DMX?

The WSR-DMX is for wired systems; the RSR-DMX is the wireless version.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
