Rako WLED30CV4
Rako WLED30CV4
Rako WLED30CV4

Rako

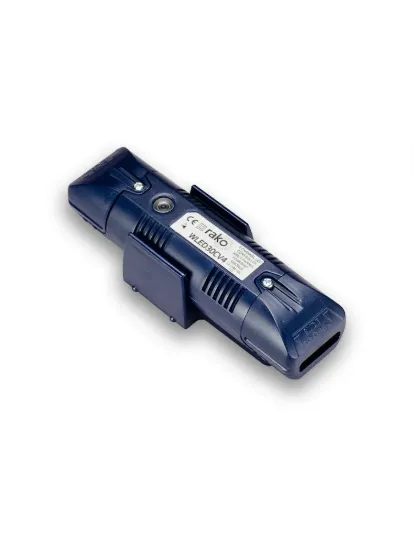

Rako WLED30CV4

SKU WLED30CV4

The Rako WLED30CV4 is a wired four-channel constant-voltage LED dimmer for RGBW and other colour LED tape in a Rako wired (CAT5 / Rakom) system. Each output is a separate Rako channel, with colour-wheel and cycle control in the Rako app. Rako rates it at 30W a channel at 12V DC or 60W at 24V DC. For longer runs, add an RLED30BOOST.

Manufacturer: Rako
£261.60 inc VAT

Key features

Wired
  • Constant voltage LED driver
  • Rated at 30 W
  • Four output channels
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WLED30CV4

Each output is a separate Rako channel, with colour-wheel and cycle control in the Rako app

30 W LED

A constant voltage driver for LED tape or fittings, rated at 30 W. Four channels, so one module can run more than one run of tape.

Wired

On the wired Rako network with the other modules for that floor.

Scenes

Colour temperature and levels are stored as Rako scenes, recalled from the plate or the app.

What the Rako WLED30CV4 is

The Rako WLED30CV4 is a 4-channel constant-voltage dimmer for Rako wired networks. The RLED30CV4+ is its wireless counterpart; for a single colour, see the WLED75CV1.

Where it sits in a Rako system

It connects to the Rako wired (CAT5 / Rakom) network by RJ11, cabled back to a RAK-LINK or RAK-STAR, and is controlled from wired keypads such as the WK-EOS-6. It is configured in RASOFT Pro; a WK-HUB adds app and voice control. See all Rako wired modules. The RLED30BOOST extends its output when the load approaches the limit.

Ratings and limits

  • 12V DC: 90W total on 3 channels, 120W on 4 channels
  • 24V DC: 180W total on 3 channels, 240W on 4 channels
  • Minimum load: 1W
  • Reverse-polarity input protection and output current limit; 10A blade fuse

Power and connection

The LED load runs from a separate 12V or 24V DC supply, which is not included; it must not be connected directly to mains. The module takes 15V DC from the wired network through its RJ11 port and communicates over CAN bus. Rako's WLED30CV4 instruction manual covers installation.

Fitting

An in-line module for vertical or horizontal mounting in a dry, ventilated position. It measures 172 x 46 x 40mm, weighs 175g and operates from +2°C to +40°C.

Questions

How much LED tape can the Rako WLED30CV4 run?

Up to 30W a channel at 12V DC or 60W a channel at 24V DC. Add RLED30BOOST units for longer runs.

Does the WLED30CV4 work with the RLED30BOOST?

Yes. Rako lists the WLED30CV4 as a compatible primary dimmer for the RLED30BOOST.

What is the difference between the WLED30CV4 and the RLED30CV4+?

The WLED30CV4 is for wired systems; the RLED30CV4+ is the wireless version.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
