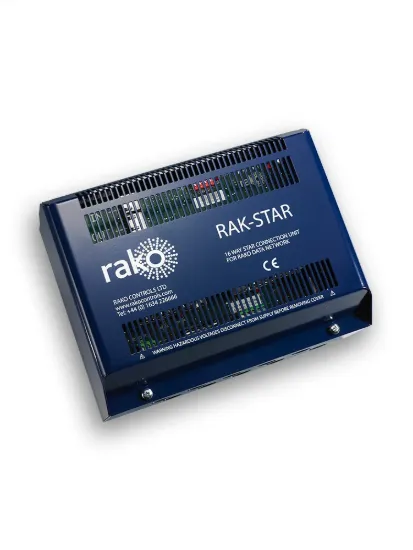

Rako RAK-STAR
Rako RAK-STAR
Rako RAK-STAR

Rako

Rako RAK-STAR

SKU RAK-STAR

The Rako RAK-STAR is a 16-way distribution board that lets many centrally run CAT5e or CAT6 cables join a Rako wired (Rakom) network at one point. It has Krone punch-down connectors plus RJ11 and RJ45 ports, and takes its 15V DC power from a RAK-LINK. It needs a RAK-LINK.

Manufacturer: Rako
£464.40 inc VAT

Key features

Wired
  • Star wiring for RAK stacks
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RAK-STAR

Has Krone punch-down connectors plus RJ11 and RJ45 ports, and takes its 15V DC power from a RAK-LINK

RAK-STAR

Distributes the wired network out to RAK stacks around the house.

In the cupboard

Central lighting control, away from the ceiling void. The keypad on the wall still runs the room.

Keypad scenes

Evening, cooking, goodnight: the scene is stored in the system, and this stack does the work.

What the Rako RAK-STAR is

The Rako RAK-STAR is a star distribution board for the Rako wired network. It gathers home-run data cables from keypads and interfaces in one steel enclosure beside the RAK-LINK.

Where it sits in a Rako system

It is powered at 15V DC from the RAK-LINK and has no power supply of its own. Wired devices such as the WK-EOS-6 keypad and interfaces such as the WAVFR connect through it. More than one RAK-STAR can be used in a system. See the Rako RAK system.

Ratings and limits

  • 18 x 8-way Krone connectors
  • 3 x RJ11 ports (Rako network)
  • 1 x RJ45 port (RAKs only)
  • Cable: CAT5e, CAT6, RJ11

Power and connection

Powered at 15V DC through the RAK-LINK; communicates over CAN bus. Rako's RAK-STAR instruction manual covers installation.

Fitting

Wall mounted in a powder-coated galvanised steel case with knockouts on the top, bottom, sides and rear. It measures 193 x 253 x 110mm, weighs 3kg and operates from +2°C to +40°C.

Questions

Does the Rako RAK-STAR need its own power supply?

No. It is powered at 15V DC from the RAK-LINK.

How many cables can the RAK-STAR take?

Rako describes it as a 16-way board, with 18 8-way Krone connectors and three RJ11 ports.

Can I use more than one RAK-STAR?

Yes. Rako allows multiple RAK-STARs in a system.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
