Rako WK-EOS-6
Rako WK-EOS-6
Rako WK-EOS-6
Rako WK-EOS-6

Rako

Rako WK-EOS-6

SKU WK-EOS-6

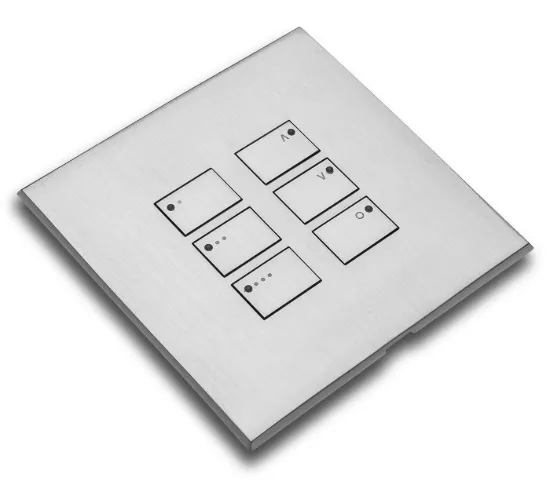

The Rako WK-EOS-6 is a six-button wired keypad module for Rako wired (CAT5 / Rakom) systems. Each button can control several rooms, configured in RASOFT Pro. It is powered from the wired network and connects by Krone punch-down. It needs a separate WP-EOS cover plate kit, which forms the buttons. See the Rako EOS range.

Manufacturer: Rako
£297.60 inc VAT

Key features

Wired
  • Six-button keypad for whole-room scenes
  • Screwless metal plate
  • Powered from the wired Rako network
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WK-EOS-6

Each button can control several rooms, configured in RASOFT Pro

On the wall

Replaces a bank of switches. One plate recalls evening, cooking, goodnight — the scene is stored in the system.

Wired

Sits on the CAT5 Rakom network with the modules for that floor.

App as well

With an RK-HUB or WK-HUB, the same scenes also run from the Rako app and from voice assistants.

What the Rako WK-EOS-6 is

The Rako WK-EOS-6 is the keypad electronics for a six-button EOS wired keypad, suited to staircases and open-plan areas. The RK-EOS-6 is the battery wireless version. It must be used with a WP-EOS-6 cover plate kit.

Where it sits in a Rako system

It connects to the Rako wired network, cabled back to a RAK-LINK or RAK-STAR, and is programmed in RASOFT Pro through a WK-HUB. For surface mounting, use the XCE-EOS-SB pattress.

Ratings and limits

  • Six buttons, each able to control multiple rooms

Power and connection

Powered at 12-18V DC from the Rako wired network. It connects by 8-way Krone punch-down, with a screw-terminal option, and communicates over CAN bus. Rako's WK-EOS-6 instruction manual covers installation.

Fitting

Flush mounts in a UK single-gang back box at least 35mm deep. The module measures 50 x 50 x 35mm and weighs 37g; the cover plate is 88 x 88 x 3mm. Rako's plate designer shows the finishes.

Guide: Rako RK-EOS-6 vs WK-EOS-6: wireless or wired six-button keypad?

Questions

Does the Rako WK-EOS-6 need a cover plate?

Yes. It must be used with a separate WP-EOS cover plate kit, which forms the buttons.

How is the WK-EOS-6 powered?

From the Rako wired network at 12-18V DC; no battery is needed.

What is the difference between the WK-EOS-6 and the RK-EOS-6?

The WK-EOS-6 is wired and network powered; the RK-EOS-6 is wireless and battery powered.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
