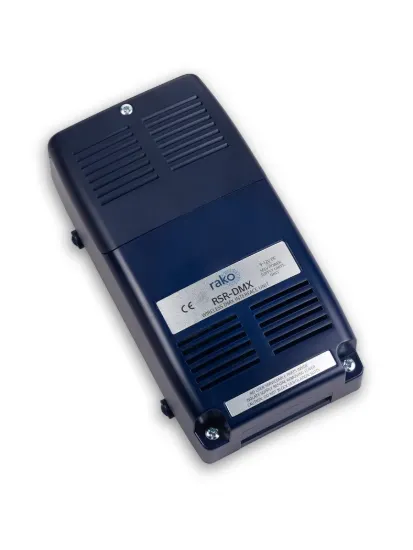

Rako RSR-DMX
Rako RSR-DMX
Rako RSR-DMX

Rako

Rako RSR-DMX

SKU RSR-DMX

The Rako RSR-DMX is a wireless 15-channel DMX controller that connects DMX lighting, such as colour-changing LED drivers and fibre-optic projectors, to a Rako wireless (Rakom RF) system. It uses the first 15 channels of DMX512 and can drive up to 32 DMX drivers. A power supply is included. Add an RK-HUB for app and voice control.

Manufacturer: Rako
£316.80 inc VAT

Key features

Wireless
  • DMX control from a Rako system
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RSR-DMX

Uses the first 15 channels of DMX512 and can drive up to 32 DMX drivers

DMX

Takes Rako scene commands and sends them as DMX for fittings that need it.

Wireless

Connects over Rakom RF. The keypad in the room talks to this module without a data cable.

Keypad scenes

The plate on the wall is everyday control. With a Hub, the same scenes also run from the Rako app.

What the Rako RSR-DMX is

The Rako RSR-DMX is a 15-channel wireless controller for DMX512-compatible drivers. The WSR-DMX is the wired-system equivalent, and the RSR-DLI is the matching controller for DALI.

Where it sits in a Rako system

It responds to Rako wireless transmitters such as the RK-EOS-6 keypad or the RK-HUB, stores up to 16 scenes, and supports a colour wheel and driver grouping by DMX address. Program it with RASOFT Pro through a RAMPI or Hub. See all Rako wireless modules.

Ratings and limits

  • 15 channels, using the first 15 channels of DMX512
  • Up to 32 DMX drivers
  • DMX cable run: up to 300m
  • Up to 16 scenes

Power and connection

It runs from 9-12V DC, with the power supply included. DMX connects by screw terminal or RJ45 socket. It communicates with the Rako system by FM radio at 433.9MHz. Rako's RSR-DMX instruction manual covers installation.

Fitting

It measures 190 x 105 x 66mm, weighs 275g and operates from +2°C to +40°C.

Questions

How many DMX channels does the Rako RSR-DMX control?

15, using the first 15 channels of DMX512, with up to 32 DMX drivers.

How does DMX connect to the RSR-DMX?

Through a screw terminal or an RJ45 socket, with cable runs of up to 300m.

Is a power supply included with the RSR-DMX?

Yes. Rako supplies a 9-12V DC power supply.

Does the Rako RSR-DMX need a hub?

No. Any Rako wireless transmitter, such as a keypad, can control it. An RK-HUB adds app control, voice assistants and timed events.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
