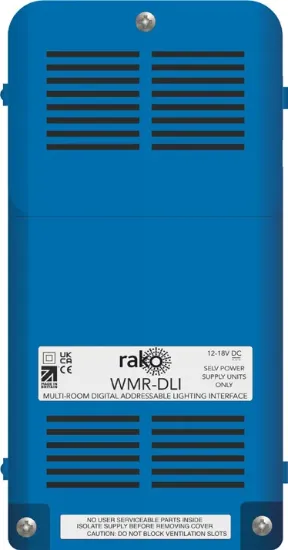

What the Rako WMR-DLI is
The Rako WMR-DLI is a DALI controller that spreads one DALI network across several Rako rooms. The WSR-DLI is the single-room version, and the DIN-DLI is the DIN rail multi-room option.
Where it sits in a Rako system
It connects to the Rako wired (CAT5 / Rakom) network by RJ11, cabled back to a RAK-LINK or RAK-STAR, and is controlled from wired keypads such as the WK-EOS-6. It is configured in RASOFT Pro; a WK-HUB adds app and voice control. See all Rako wired modules.
Ratings and limits
- Up to 64 DALI ballasts
- Up to 16 rooms, 16 scenes per room
- DT6 and DT8 ballasts: RGBW and colour-tunable control
Power and connection
It takes 12V DC for the DALI side and 15V DC from the Rako wired network, which connects by RJ11 socket or Krone connector. The DALI line connects to a 4-way screw terminal. Rako's WMR-DLI instruction manual covers installation.
Fitting
It measures 190 x 105 x 66mm, weighs 280g and operates from +2°C to +40°C.
Questions
How many rooms can the Rako WMR-DLI control?
Up to 16 rooms, with 16 scenes each, from up to 64 ballasts.
What is the difference between the WMR-DLI and the DIN-DLI?
Both are multi-room DALI controllers; the DIN-DLI mounts on a DIN rail in Rako's DIN system.
Does the WMR-DLI support tunable white?
Yes, with DT8 ballasts.
