Rako DIN-DLI

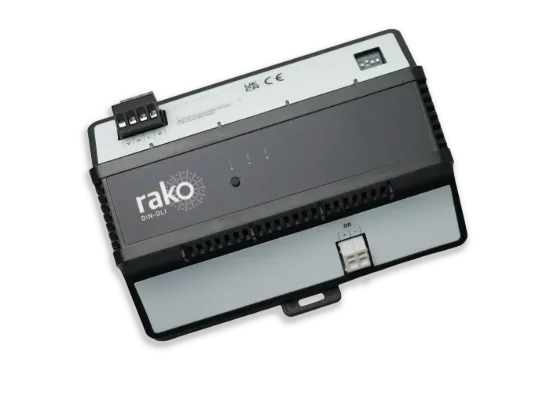

Rako DIN-DLI
Rako DIN-DLI – dimension drawing, front and side

Rako

Rako DIN-DLI

SKU DIN-DLI

The Rako DIN-DLI is a multi-room DALI controller for DIN rail mounting, part of Rako's wired DIN system. It addresses up to 64 DALI ballasts across up to 16 rooms, including DT8 fittings for colour and tunable white. It is powered from the DIN bus. It needs a DIN-LINK.

Manufacturer: Rako
£944.40 inc VAT

Key features

Wired
  • DALI control from a DIN-rail module
  • Mounts on a standard DIN rail
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako DIN-DLI

Addresses up to 64 DALI ballasts across up to 16 rooms, including DT8 fittings for colour and tunable white

DALI

Puts DALI fittings on the wired Rako network, so the keypad in the room can still recall a scene.

DIN-rail

Clips onto a standard DIN rail in the consumer unit or a Rako enclosure, next to the breakers it works with.

Keypad scenes

The plate on the wall recalls scenes. This module does the dimming or switching in the cupboard.

What the Rako DIN-DLI is

The Rako DIN-DLI is a DIN-mounted controller for an addressable DALI network. Compared with the single-room WSR-DLI, it spreads its 64 ballasts across up to 16 rooms; the WMR-DLI is Rako's other multi-room DALI controller.

Where it sits in a Rako system

It sits on the DIN bus behind a DIN-LINK, which links the DIN modules to the Rako wired network and is powered by a DIN-PSU-100. Programming is done in RASOFT Pro and needs a WK-HUB. Wireless keypads can control it through a WK-HUB or WRB100. See the Rako DIN range.

Ratings and limits

  • Up to 64 DALI ballasts
  • Up to 16 rooms
  • DT6 and DT8 (RGBWAF/Tc) ballasts
  • Uses 16 of the DIN-LINK's 64 DPU

Power and connection

Powered via the DIN bus through a 4-way screw terminal, with push terminals for the DALI line. Rako's DIN-DLI instruction manual covers installation, which should be done by a competent electrician.

Fitting

Mounts on a top-hat DIN rail (IEC/EN 60715) and is 9 DIN modules wide (157 x 110 x 59mm, 210g), with 150mm vertical clearance required. It operates from +2°C to +40°C.

Questions

How many DALI ballasts can the Rako DIN-DLI control?

Up to 64, across up to 16 rooms.

Does the DIN-DLI support tunable white?

Yes. Rako lists DT8 ballasts, covering RGBWAF and tunable white (Tc).

Does the DIN-DLI need its own power supply?

No. It is powered from the DIN bus, fed by the DIN-LINK and DIN-PSU-100.
