Rako WLED75CV1
Rako WLED75CV1
Rako WLED75CV1
Rako WLED75CV1

Rako

Rako WLED75CV1

SKU WLED75CV1

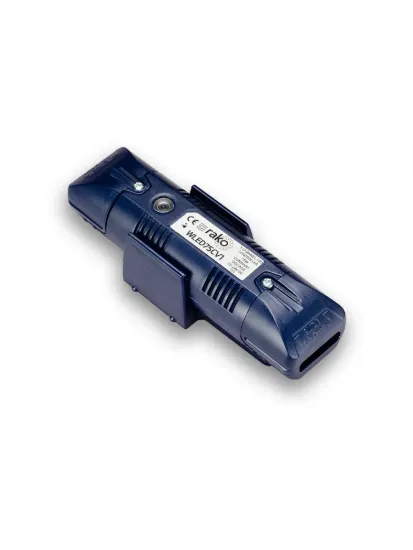

The Rako WLED75CV1 is a wired single-channel constant-voltage LED dimmer for 12V or 24V DC LED tape and fittings in a Rako wired (CAT5 / Rakom) system. It dims on commands from Rako wired keypads and takes its network power from the wired network. Rako rates it at 75W at 12V DC or 150W at 24V DC. It needs a separate DC LED supply. The RLED75CV1 is the wireless version.

Manufacturer: Rako
£223.20 inc VAT

Key features

Wired
  • Constant voltage LED driver
  • Rated at 75 W
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WLED75CV1

Dims on commands from Rako wired keypads and takes its network power from the wired network

75 W LED

A constant voltage driver for LED tape or fittings, rated at 75 W.

Wired

On the wired Rako network with the other modules for that floor.

Scenes

Colour temperature and levels are stored as Rako scenes, recalled from the plate or the app.

What the Rako WLED75CV1 is

The Rako WLED75CV1 is a 1-channel constant-voltage dimmer for Rako wired networks. The RLED75CV1 is its wireless counterpart, and the WLED150CV1 is the other wired single-channel rating.

Where it sits in a Rako system

It connects to the Rako wired (CAT5 / Rakom) network by RJ11, cabled back to a RAK-LINK or RAK-STAR, and is controlled from wired keypads such as the WK-EOS-6. It is configured in RASOFT Pro; a WK-HUB adds app and voice control. See all Rako wired modules.

Ratings and limits

  • 12V DC: 1W to 75W
  • 24V DC: 1W to 150W
  • Single channel, constant-voltage LED only
  • Reverse-polarity input protection and output current limit; 10A blade fuse

Power and connection

The load runs from a separate 12V or 24V DC supply, which is not included; the module takes 15V DC from the wired network. It has a 2-way input terminal, a 6-way output terminal and an RJ11 network port, and communicates over CAN bus. Rako's WLED75CV1 instruction manual covers installation.

Fitting

An in-line module for vertical or horizontal mounting in a dry, ventilated position. It measures 172 x 46 x 40mm, weighs 175g and operates from +2°C to +40°C.

Questions

What load can the Rako WLED75CV1 dim?

Up to 75W of constant-voltage LED at 12V DC, or 150W at 24V DC.

Does the WLED75CV1 include a power supply?

No. It needs a separate 12V or 24V DC LED supply; the module itself is powered from the Rako wired network.

What is the difference between the WLED75CV1 and the RLED75CV1?

The WLED75CV1 is for Rako wired systems; the RLED75CV1 is the wireless version.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
