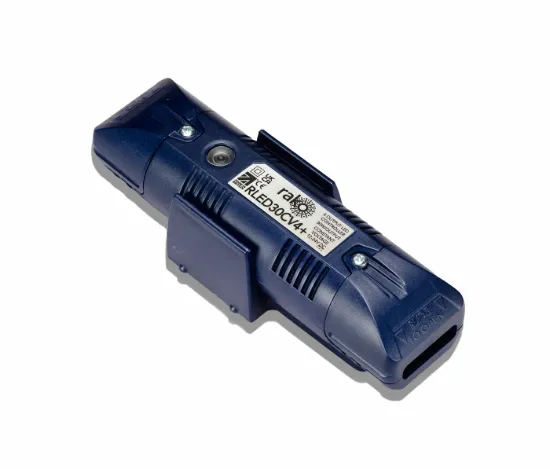

Rako RLED30CV4+
Rako RLED30CV4+
Rako RLED30CV4+

Rako

Rako RLED30CV4+

SKU RLED30CV4+

The Rako RLED30CV4+ is a wireless four-channel constant-voltage LED dimmer for RGBW, RGB and tunable-white LED tape in a Rako wireless (Rakom RF) system. Its outputs can run as four separate channels or as one colour channel, set in RASOFT Pro. Rako rates it at 30W a channel at 12V DC or 60W at 24V DC. For long runs, add an RLED30BOOST.

Manufacturer: Rako
£228.00 inc VAT

Key features

Wireless
  • Constant voltage LED driver
  • Rated at 30 W
  • Four output channels
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RLED30CV4+

Its outputs can run as four separate channels or as one colour channel, set in RASOFT Pro

30 W LED

A constant voltage driver for LED tape or fittings, rated at 30 W. Four channels, so one module can run more than one run of tape.

Wireless

In-line on a wireless Rako system. The keypad in the room talks to this driver over Rakom RF.

Scenes

Colour temperature and levels are stored as Rako scenes, recalled from the plate or the app.

What the Rako RLED30CV4+ is

The Rako RLED30CV4+ is a constant-voltage LED dimmer with up to four individually controllable outputs and a built-in Rako wireless receiver. It suits colour-changing and tunable-white tape. The WLED30CV4 is the wired-system equivalent; for a single colour, the RLED75CV1 is simpler.

Where it sits in a Rako system

It is controlled from Rako wireless transmitters such as an RK-EOS-6 keypad or the RK-HUB, and configured in RASOFT Pro through a RAMPI or Hub. Rako lists four modes: four RGBW channels, one RGBW channel, one RGB channel or one tunable-white channel. Where a run approaches the limit, the RLED30BOOST extends it. See all Rako wireless modules.

Ratings and limits

  • 12V DC: 90W total on 3 channels, 120W on 4 channels
  • 24V DC: 180W total on 3 channels, 240W on 4 channels
  • Minimum load: 1W
  • Reverse-polarity input protection and output current limit; 10A blade fuse

Power and connection

It runs from a separate 12V or 24V DC LED supply, which is not included. It has a 2-way terminal for the DC supply and a 6-way terminal for the load, and communicates by FM radio at 433.9MHz. Rako's RLED30CV4+ instruction manual covers installation.

Fitting

An in-line module measuring 172 x 46 x 40mm and weighing 142g. It operates from +2°C to +40°C.

Questions

Can the Rako RLED30CV4+ do tunable white?

Yes. Rako lists a colour-tunable mode alongside RGBW and RGB.

How much LED tape can the RLED30CV4+ run?

Up to 30W a channel at 12V DC or 60W a channel at 24V DC. Add RLED30BOOST units for longer runs.

Does the RLED30CV4+ include a power supply?

No. It needs a separate 12V or 24V DC supply.

Does the Rako RLED30CV4+ need a hub?

No. Any Rako wireless transmitter, such as a keypad, can control it. An RK-HUB adds app control, voice assistants and timed events.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
