Rako RMS-800
Rako RMS-800
Rako RMS-800

Rako

Rako RMS-800

SKU RMS-800

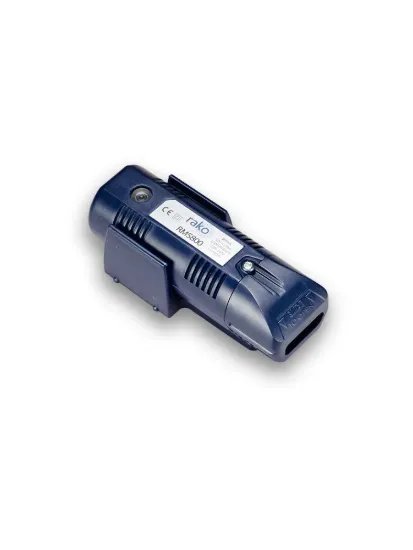

The Rako RMS-800 is an 800VA wireless switching module that turns non-dimmable mains loads on and off in a Rako wireless (Rakom RF) system. Use it for non-dimmable lighting, extractor fans, pumps and contactors, where a dimmer is not needed. Rako rates it from 1VA to 800VA and says inrush current must be allowed for. Add an RK-HUB for timed events and app control.

Manufacturer: Rako
£138.00 inc VAT

Key features

Wireless
  • Switches loads up to 800 W
  • In-line wireless module
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RMS-800

Use it for non-dimmable lighting, extractor fans, pumps and contactors, where a dimmer is not needed

800 W switching

On and off for loads that should not be dimmed, recalled as part of a Rako scene.

In-line

Sits in the ceiling void or a fitting, on a wireless Rako system. No rack in a cupboard.

Wireless

Connects over Rakom RF. The keypad in the room talks to this module without a data cable.

What the Rako RMS-800 is

The Rako RMS-800 is an 800VA switching module for Rako wireless systems. It switches rather than dims, so it suits non-dimmable lighting, fans, pumps and contactors. For dimmable lighting, use a trailing-edge module such as the RMT-500 or a leading-edge module such as the RML-500.

Where it sits in a Rako system

The RMS-800 is controlled from any Rako wireless transmitter, such as an RK-EOS-6 keypad or the RK-HUB, and stores up to 16 scenes. Program it from a Rako keypad, or with RASOFT Pro through a RAMPI or Hub. Rako recommends a WRB100 repeater where reception is intermittent. See all Rako wireless modules.

Ratings and limits

  • Load range: 1VA to 800VA
  • Load types: non-dimmable mains lighting, fans, pumps, contactors
  • Inrush current must be taken into account when sizing the load

Power and connection

It runs from a 230V AC 50Hz supply, with 3-way screw terminals for input and output that take cable up to 4mm². It communicates by FM radio at 433.9MHz. Rako's RMS-800 instruction manual covers installation, which should be done by a competent electrician.

Fitting

An in-line module that Rako specifies for vertical or horizontal mounting, in a dry, ventilated and accessible position away from enclosed metal casings. It measures 138 x 46 x 40mm, weighs 205g and operates from +2°C to +40°C.

Guide: Rako RMT-500 vs RML-500: trailing-edge or leading-edge for UK lights?

Questions

Can the Rako RMS-800 dim lights?

No. It is a switching module for non-dimmable loads. Choose an RMT or RML dimmer for dimmable lighting.

What can I switch with the RMS-800?

Rako lists non-dimmable lighting, fans, pumps and contactors, up to 800VA including inrush.

Does the RMS-800 need a hub?

No. Any Rako wireless transmitter can control it. An RK-HUB adds app control, voice assistants and timed events.

Is the RMS-800 wireless or wired?

Wireless. It is part of Rako's wireless (Rakom RF) range and receives commands at 433.9MHz.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
