Rako RML-1200
Rako RML-1200
Rako RML-1200

Rako

Rako RML-1200

SKU RML-1200

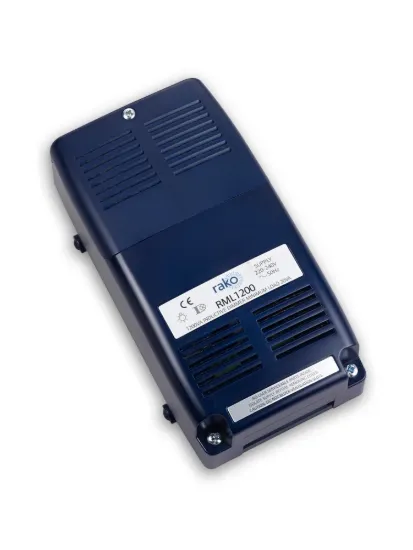

The Rako RML-1200 is a 1200W wireless leading-edge dimmer module for mains tungsten, halogen and low-voltage lighting on leading-edge dimmable transformers, in a Rako wireless (Rakom RF) system. It is the high-load version of the RML-500 and is not generally recommended for mains LED. Rako rates it at 20W to 1200W, with transformer loads limited to 1080W.

Manufacturer: Rako
£294.00 inc VAT

Key features

Wireless
  • Leading-edge dimmer for mains-dimmable lighting
  • Rated at 1200 W
  • In-line wireless module
  • Ceiling mount
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RML-1200

Is the high-load version of the RML-500 and is not generally recommended for mains LED

1200 W dimmer

A leading-edge dimmer for LED and other mains-dimmable loads, rated at 1200 W.

In-line

Sits in the ceiling void or a fitting, on a wireless Rako system. No rack in a cupboard.

Wireless

Connects over Rakom RF. The keypad in the room talks to this module without a data cable.

What the Rako RML-1200 is

The Rako RML-1200 is a 1200W leading-edge (inductive) dimmer for Rako wireless systems, for mains tungsten and halogen lighting and low-voltage lighting on leading-edge dimmable transformers. The RML-500 covers loads up to 500W. For mains dimmable LED, the trailing-edge RMT-1200 is the matching high-load module.

Where it sits in a Rako system

The RML-1200 is controlled from any Rako wireless transmitter, including RK-EOS-6 keypads and the RK-HUB, and stores up to 16 scenes. Program it from a Rako keypad, or with RASOFT Pro through a RAMPI or Hub. Rako recommends a WRB100 repeater where reception is intermittent. See all Rako wireless modules.

Ratings and limits

  • Load range: 20W to 1200W (incandescent and halogen)
  • Low-voltage transformer loads: 1080W maximum, leading-edge only
  • Mains voltage LED: not recommended
  • Short-circuit protection and thermal shutdown

Power and connection

It runs from a 230V AC 50Hz supply, with 3-way screw terminals for supply and load that take cable up to 4mm². It communicates by FM radio at 433.9MHz. Rako's RML-1200 instruction manual covers installation, which should be done by a competent electrician.

Fitting

Designed to sit in a ceiling void reached through an access panel, or to be wall mounted in an electrical cupboard. Rako specifies vertical mounting in a dry, ventilated position away from enclosed metal casings. It measures 190 x 105 x 66mm, weighs 555g and operates from +2°C to +40°C.

Guide: Rako RMT-500 vs RML-500: trailing-edge or leading-edge for UK lights?

Questions

Can the Rako RML-1200 dim LED lamps?

Rako does not generally recommend it for mains LED. The trailing-edge RMT-1200 is the high-load choice for LED.

What is the minimum load on the RML-1200?

20W. The maximum is 1200W, or 1080W for low-voltage transformer loads.

Does the RML-1200 need a hub?

No. Any Rako wireless transmitter can control it. An RK-HUB adds app control, voice assistants and timed events.

Should I choose the RML-1200 or the RML-500?

Choose the RML-1200 when the circuit is over 500W, or over 450W of low-voltage transformer load.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
