Rako RLED75CV1
Rako RLED75CV1
Rako RLED75CV1

Rako

Rako RLED75CV1

SKU RLED75CV1

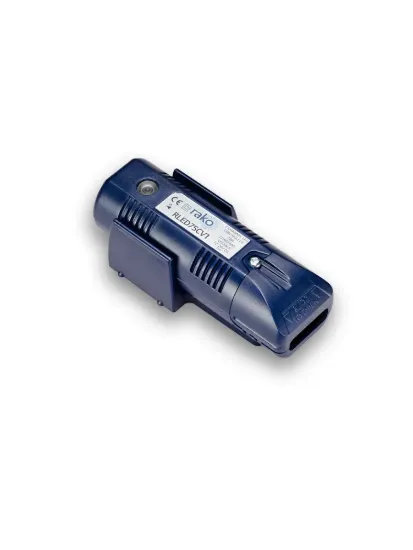

The Rako RLED75CV1 is a wireless single-channel constant-voltage LED dimmer for 12V or 24V DC LED tape and fittings in a Rako wireless (Rakom RF) system. It sits between the LED power supply and the load and dims on commands from any Rako transmitter. Rako rates it at 75W at 12V DC or 150W at 24V DC. It needs a separate DC power supply. Add an RK-HUB for app and voice control.

Manufacturer: Rako
£192.00 inc VAT

Key features

Wireless
  • Constant voltage LED driver
  • Rated at 75 W
  • Ceiling mount
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RLED75CV1

Sits between the LED power supply and the load and dims on commands from any Rako transmitter

75 W LED

A constant voltage driver for LED tape or fittings, rated at 75 W.

Wireless

In-line on a wireless Rako system. The keypad in the room talks to this driver over Rakom RF.

Scenes

Colour temperature and levels are stored as Rako scenes, recalled from the plate or the app.

What the Rako RLED75CV1 is

The Rako RLED75CV1 is a single-channel constant-voltage LED dimmer with a built-in Rako wireless receiver. It is the smaller of Rako's two single-channel wireless CV modules: the RLED150CV1 doubles the rating. The WLED75CV1 is the wired-system version of this module.

Where it sits in a Rako system

It is controlled from any Rako wireless transmitter, such as an RK-EOS-6 keypad or the RK-HUB. Program it from a Rako keypad, or with RASOFT Pro through a RAMPI or Hub. See all Rako wireless modules.

Ratings and limits

  • 12V DC: 1W to 75W
  • 24V DC: 1W to 150W
  • Single channel, constant-voltage LED only
  • Reverse-polarity input protection and output current limit; 10A blade fuse

Power and connection

It runs from the LED circuit's own 12V or 24V DC supply, which is not included. It has a 2-way terminal for the DC supply and a 4-way terminal for the load, and communicates by FM radio at 433.9MHz. Rako's RLED75CV1 instruction manual covers installation, which should be done by a competent electrician.

Fitting

For ceiling installation or surface mounting with the supplied bracket. It measures 138 x 46 x 40mm, weighs 134g and operates from +2°C to +40°C.

Questions

What load can the Rako RLED75CV1 dim?

Up to 75W of constant-voltage LED at 12V DC, or 150W at 24V DC.

Does the RLED75CV1 include a power supply?

No. It runs from a separate 12V or 24V DC LED supply sized for the load.

What is the difference between the RLED75CV1 and the WLED75CV1?

The RLED75CV1 is for Rako wireless systems; the WLED75CV1 is the wired-system version.

Does the Rako RLED75CV1 need a hub?

No. Any Rako wireless transmitter, such as a keypad, can control it. An RK-HUB adds app control, voice assistants and timed events.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
