Rako WCM-D
Rako WCM-D
Rako WCM-D

Rako

Rako WCM-D

SKU WCM-D

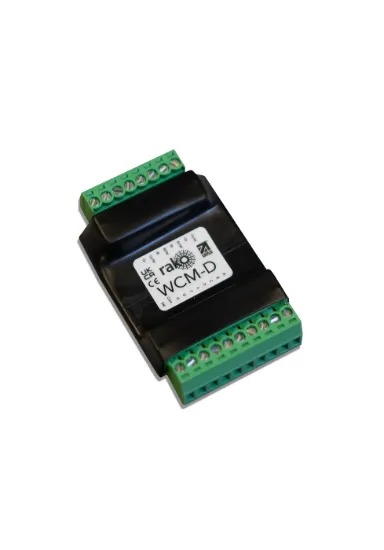

The Rako WCM-D is a wired back-box interface that lets custom and third-party switch plates work in place of a Rako wired keypad. It takes up to eight dry-contact switch inputs and connects to the Rako wired (CAT5 / Rakom) network, which also powers it. It fits a standard UK single back box. It is programmed through a WK-HUB.

Manufacturer: Rako
£236.40 inc VAT

Key features

Wired
  • Wall keypad for whole-room scenes
  • Powered from the wired Rako network
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WCM-D

Wired back-box interface that lets custom and third-party switch plates work in place of a Rako wired keypad

On the wall

Replaces a bank of switches. One plate recalls evening, cooking, goodnight — the scene is stored in the system.

Wired

Sits on the CAT5 Rakom network with the modules for that floor.

App as well

With an RK-HUB or WK-HUB, the same scenes also run from the Rako app and from voice assistants.

What the Rako WCM-D is

The Rako WCM-D is a compact wired interface for conventional push buttons or switches. It is the wired counterpart of the battery-powered RCI-7M used in wireless systems.

Where it sits in a Rako system

It sits in the back box on the Rako wired network, cabled back to a RAK-LINK or RAK-STAR. It is programmed in RASOFT Pro through a WK-HUB. See all Rako wired interfaces.

Ratings and limits

  • Up to eight dry-contact switch inputs
  • Recommended maximum cable length to switches: 300mm

Power and connection

Powered at 12-18V DC from the Rako wired network, with an 8-way screw connector for the CAN bus and a 10-way connector for contacts, common and setup. Cable: UTP CAT5e or CAT6. Rako's WCM-D instruction manual covers installation.

Fitting

Fits a standard UK single-gang back box, minimum 35mm deep and 47mm advised. It measures 64 x 40 x 15mm, weighs 29g and operates from +2°C to +40°C.

Questions

What does the Rako WCM-D do?

It lets custom and third-party switch plates act as a Rako wired keypad.

How many switches can the WCM-D take?

Up to eight switch inputs.

What back box does the WCM-D need?

A UK single-gang back box at least 35mm deep; Rako advises 47mm.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
