Rako RCI-7M
Rako RCI-7M
Rako RCI-7M

Rako

Rako RCI-7M

SKU RCI-7M

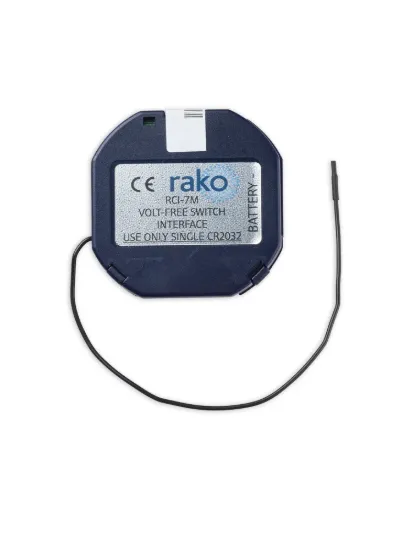

The Rako RCI-7M is a battery-powered wireless switch interface that turns up to 7 momentary third-party switches into Rako wireless (Rakom RF) commands. It fits in a standard UK back box close to the switches and runs from a CR2032 coin cell. It is programmed by NFC in RASOFT Pro, using a RAMPI or RK-HUB.

Manufacturer: Rako
£172.80 inc VAT

Key features

Wireless
  • Switch interface for third-party plates
  • Fits in a standard UK wall box
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RCI-7M

Fits in a standard UK back box close to the switches and runs from a CR2032 coin cell

Existing switches

Keeps the plate the room already has, and sends Rako scenes from those buttons.

Wireless

Talks to in-line modules over Rakom RF. No keypad cable back to a rack.

App as well

With an RK-HUB or WK-HUB, the same scenes also run from the Rako app and from voice assistants.

What the Rako RCI-7M is

The Rako RCI-7M is a low-profile wireless interface for up to 7 momentary switches (not included). The RCI-4L is the version for four latching switches.

Where it sits in a Rako system

Each input can send commands to any room, so one switch plate can control several rooms or start a macro. It is programmed by NFC in RASOFT Pro with a RAMPI or RK-HUB. See all Rako wireless interfaces.

Ratings and limits

  • Inputs: up to 7 momentary switches
  • Maximum cable length to switches: 300mm
  • Push-to-dim via toggle fade

Power and connection

It runs from one CR2032 3V lithium coin cell and has 8-way push-in terminals for 0.5mm² wire. It communicates by FM radio at 433.9MHz. Rako's RCI-7M instruction manual covers installation.

Fitting

Fits a standard UK back box close to the switches it reads. It measures 48 x 48 x 9mm and operates from +2°C to +40°C.

Questions

What switches work with the Rako RCI-7M?

Third-party momentary (retractive) push switches. For latching switches, use the RCI-4L.

How is the Rako RCI-7M programmed?

Only with RASOFT Pro, by NFC through a RAMPI or Hub.

Does the RCI-7M need mains power?

No. It runs from a CR2032 coin cell.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
