Rako WAVFR
Rako WAVFR
Rako WAVFR
Rako WAVFR

Rako

Rako WAVFR

SKU WAVFR

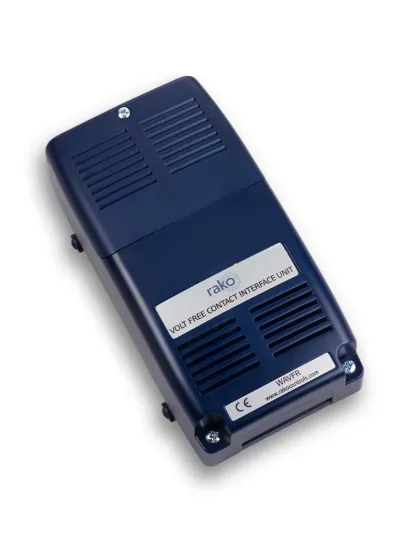

The Rako WAVFR is a wired interface for up to ten volt-free contact inputs in a Rako wired (CAT5 / Rakom) system, suited to gate, security system and door contact integration. Each input can act on make, on break or both. It is powered at 15V DC from a RAK-LINK. The RMR-VF is the wireless equivalent.

Manufacturer: Rako
£300.00 inc VAT

Key features

Wired
  • Programming interface for Rasoft Pro
  • Programming and diagnostics on the wired network
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WAVFR

Each input can act on make, on break or both

Rasoft Pro

The commissioning tool. A computer running Rasoft Pro talks to the system through this interface.

Wired

Sits on the wired network for addressing, scene programming and diagnostics.

For the installer

Used while the system is set up. The householder then runs the keypad, and the app if a Hub is fitted.

What the Rako WAVFR is

The Rako WAVFR is a 10-way volt-free interface for Rako wired systems. For mains-voltage inputs such as mains PIRs, use the WAVMI.

Where it sits in a Rako system

It connects to the wired network and is powered from a RAK-LINK. Each input can send scenes, levels, fades, toggles and more. It is programmed in RASOFT Pro through a WK-HUB. See all Rako wired interfaces.

Ratings and limits

  • Inputs: 10 volt-free contacts, each with on make and on break states
  • One 2-core cable per input; multi-core cable not permitted
  • Maximum cable run: 100m

Power and connection

Powered at 15V DC via the RAK-LINK, with an RJ11 port and punch-down connector for the network. It communicates over CAN. Rako's WAVFR instruction manual covers installation.

Fitting

It measures 190 x 105 x 66mm, weighs 340g and operates from +2°C to +40°C.

Questions

What can the Rako WAVFR connect to?

Volt-free contacts such as gate controllers, security systems and door contacts, up to ten inputs.

How is the WAVFR programmed?

In RASOFT Pro, using a WK-HUB as the communication device.

What is the difference between the WAVFR and the WAVMI?

The WAVFR takes ten volt-free inputs; the WAVMI takes up to five mains-voltage inputs.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
