Rako DIN-4C

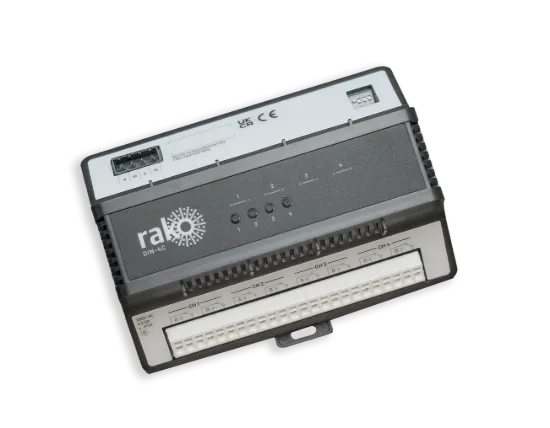

Rako DIN-4C
Rako DIN-4C – dimension drawing, front and side

Rako

Rako DIN-4C

SKU DIN-4C

The Rako DIN-4C is a four-channel curtain and blind controller for DIN rail mounting, part of Rako's wired DIN system. Each channel gives open, stop and close control of a motorised curtain, screen or blind, using dual relays. Rako rates each channel at 1.5A for 230V AC, 12-24V DC or dry-contact motors. It needs a DIN-LINK.

Manufacturer: Rako
£818.40 inc VAT

Key features

Wired
  • 4 channels on a DIN rail
  • Wired controller for a consumer unit or enclosure
  • Mounts on a standard DIN rail
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako DIN-4C

Each channel gives open, stop and close control of a motorised curtain, screen or blind, using dual relays

4 channels

Controls 4 lighting circuits from one DIN-rail module on the wired Rako network.

DIN-rail

Clips onto a standard DIN rail in the consumer unit or a Rako enclosure, next to the breakers it works with.

Keypad scenes

The plate on the wall recalls scenes. This module does the dimming or switching in the cupboard.

What the Rako DIN-4C is

The Rako DIN-4C is a four-channel relay module for curtain and blind motors, with channels used individually or grouped. It is the blinds module of the DIN range, alongside the DIN-4T dimmer. The WM-CUB is the RAK8 card equivalent. Browse Rako wired blinds.

Where it sits in a Rako system

It sits on the DIN bus behind a DIN-LINK, which links the DIN modules to the Rako wired network and is powered by a DIN-PSU-100. Programming is done in RASOFT Pro and needs a WK-HUB. Wireless keypads can control it through a WK-HUB or WRB100. See the Rako DIN range.

Ratings and limits

  • Four channels, dual-relay outputs
  • Maximum load: 1.5A per channel
  • Motors: 230V AC, 12V DC to 24V DC, or dry-contact
  • Over-temperature protection

Power and connection

It connects to the DIN bus by a 4-way screw terminal and uses 8 of the DIN-LINK's 64 DPU. Rako's DIN-4C instruction manual covers installation, which should be done by a competent electrician.

Fitting

Mounts on a top-hat DIN rail (IEC/EN 60715) and is 9 DIN modules wide (157 x 110 x 59mm, 275g), with 150mm vertical clearance required. It operates from +2°C to +40°C.

Guide: Rako curtains and blinds: control them from the same keypad as the lights

Questions

Which motors does the Rako DIN-4C control?

230V AC motors, 12V to 24V DC motors and dry-contact inputs, up to 1.5A a channel.

How many blinds can one DIN-4C control?

Four, one per channel, or fewer if channels are grouped.

What does the DIN-4C need to work?

A DIN-LINK with a DIN-PSU-100, and a WK-HUB for programming.
