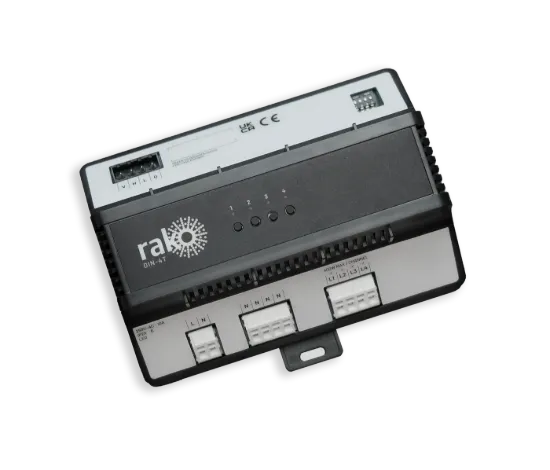

Rako DIN-4T

SKU DIN-4T

The Rako DIN-4T is a four-channel trailing-edge dimmer module for DIN rail mounting in a consumer unit or enclosure, part of Rako's wired DIN system. It dims LED, tungsten, low-voltage halogen and other trailing-edge loads. Rako rates each channel at 200W of LED or 400W of mains halogen, with a 10A total. It needs a DIN-LINK.

Manufacturer: Rako
£818.40 inc VAT

Key features

Wired
  • 4 channels on a DIN rail
  • Wired trailing-edge dimmer for a consumer unit or enclosure
  • Mounts on a standard DIN rail
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako DIN-4T

Dims LED, tungsten, low-voltage halogen and other trailing-edge loads

4 channels

Controls 4 lighting circuits from one DIN-rail module on the wired Rako network.

DIN-rail

Clips onto a standard DIN rail in the consumer unit or a Rako enclosure, next to the breakers it works with.

Keypad scenes

The plate on the wall recalls scenes. This module does the dimming or switching in the cupboard.

What the Rako DIN-4T is

The Rako DIN-4T is a 4-channel trailing-edge dimmer for DIN rail enclosures. It is the dimming module of the DIN range; the DIN-8S switches non-dimmable loads and the DIN-4C controls blinds.

Where it sits in a Rako system

It sits on the DIN bus behind a DIN-LINK, which links the DIN modules to the Rako wired network and is powered by a DIN-PSU-100. Programming is done in RASOFT Pro and needs a WK-HUB. Wireless keypads can control it through a WK-HUB or WRB100. See the Rako DIN range.

Ratings and limits

  • LED: up to 200W per channel
  • Mains halogen: up to 400W per channel
  • Total rated current: 10A; minimum load 1W
  • Auto-resetting short-circuit, over-temperature and surge protection; 10A main and 5A channel fuses

Power and connection

It runs from 230V AC (+10% / -15%) and connects to the DIN bus by a 4-way screw terminal. It uses 8 of the DIN-LINK's 64 DPU. Rako's DIN-4T instruction manual covers installation, which should be done by a competent electrician.

Fitting

Mounts on a top-hat DIN rail (IEC/EN 60715) and is 9 DIN modules wide (157 x 110 x 59mm, 285g), with 150mm vertical clearance required. It operates from +2°C to +40°C.

Questions

What load can each Rako DIN-4T channel dim?

Up to 200W of LED or 400W of mains halogen, within 10A total.

What does the DIN-4T need to work?

A DIN-LINK with a DIN-PSU-100, and a WK-HUB for programming.

Can the DIN-4T be controlled from wireless keypads?

Yes, through a WK-HUB or WRB100 bridging to the wired network.
