Rako DIN-PSU-100

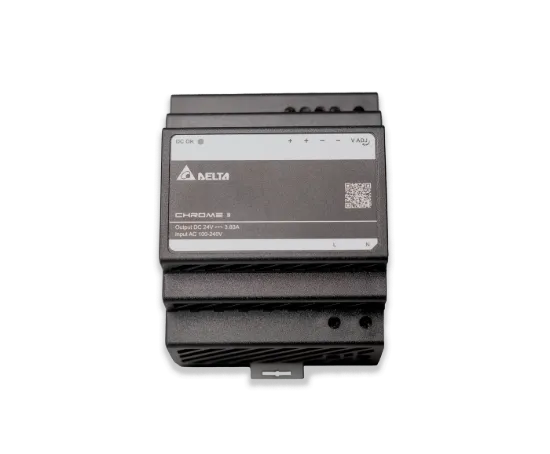

Rako DIN-PSU-100
Rako DIN-PSU-100 – dimension drawing, front and side

Rako

Rako DIN-PSU-100

SKU DIN-PSU-100

The Rako DIN-PSU-100 is a DIN rail power supply that powers the DIN-LINK in Rako's wired DIN system. It converts 230V AC to 24V DC, with a maximum of 90W and 3A. It is 4 DIN modules wide. It is the required supply for the DIN-LINK.

Manufacturer: Rako
£118.80 inc VAT

Key features

Wired
  • Power supply for a DIN Rako stack
  • Mounts on a standard DIN rail
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako DIN-PSU-100

Converts 230V AC to 24V DC, with a maximum of 90W and 3A

DIN power

Feeds the DIN modules in the consumer unit or enclosure.

DIN-rail

Clips onto a standard DIN rail in the consumer unit or a Rako enclosure, next to the breakers it works with.

Keypad scenes

The plate on the wall recalls scenes. This module does the dimming or switching in the cupboard.

What the Rako DIN-PSU-100 is

The Rako DIN-PSU-100 is the 24V DC supply for the DIN-LINK, which in turn powers the DIN bus and the Rako wired network. It has a DC LED indicator.

Where it sits in a Rako system

It sits on the same DIN rail as the DIN-LINK and DIN modules such as the DIN-4T. Rako rates it for 30 Rako wired devices. See the Rako DIN range.

Ratings and limits

  • Input: 230V AC +10% / -15%
  • Output: 24V DC ±1%
  • Maximum output: 90W, 3A
  • Over-current, over-voltage, under-voltage lockout and reverse-polarity protection

Power and connection

Screw terminals for input and output take cable from 1.0 to 3.0mm². Installation should be done by a competent electrician.

Fitting

Mounts on a top-hat DIN rail (IEC/EN 60715) and is 4 DIN modules wide (70 x 87.5 x 55mm, 230g), with 150mm vertical clearance. It operates from -30°C to +70°C.

Questions

What does the Rako DIN-PSU-100 power?

The DIN-LINK, which powers the DIN bus and the Rako wired network.

What is the output of the DIN-PSU-100?

24V DC, up to 90W and 3A.

Is the DIN-PSU-100 required?

Yes. Rako's DIN-LINK manual says the DIN-LINK needs a DIN-PSU-100 to operate.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
