Shop relays
Rako RX-LINK
Rako RX-LINK
Rako RX-LINK
Rako RX-LINK

Rako

Rako RX-LINK

SKU RX-LINK

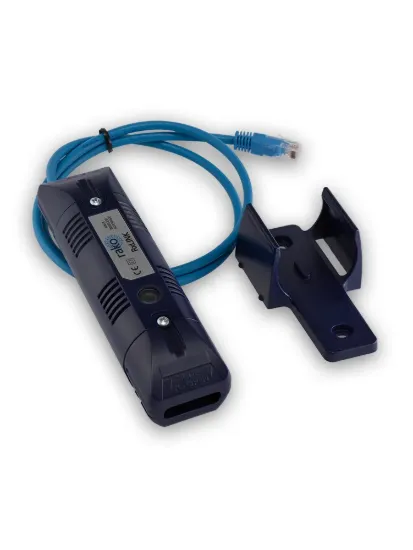

The Rako RX-LINK is a wireless receiver for Rako RAK8 units, letting a central RAK stack respond to Rako wireless (Rakom RF) transmitters. It handles up to 16 circuits, or two RAK8 boards, and is powered directly from the RAK. It must be configured in RASOFT Pro. Pair it with a RAK8-MB.

Manufacturer: Rako
£321.60 inc VAT

Key features

Wired
  • Joins parts of a Rako system together
  • Wired Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RX-LINK

Handles up to 16 circuits, or two RAK8 boards, and is powered directly from the RAK

Interface

A link on the network: keypads, modules and the Hub stay on one system.

With the Hub

App, voice and timers still need an RK-HUB or WK-HUB. This part keeps the system connected.

Keypads still run the room

The plate on the wall is the everyday control. This accessory sits in the background.

What the Rako RX-LINK is

The Rako RX-LINK is the wireless link unit for RAK8 boards. Where a wired system uses a RAK-LINK, a wireless system uses the RX-LINK to bring central dimming and switching under wireless keypad control.

Where it sits in a Rako system

It connects by RJ45 to a RAK8-MB or RAK8-S and receives commands from Rako wireless transmitters such as the RK-EOS-6 keypad. Configure it in RASOFT Pro with a RAMPI or Hub. For more than 16 circuits, add further RX-LINKs. See the Rako RAK system.

Ratings and limits

  • Up to 16 circuits (two RAK8 boards)
  • LED feedback

Power and connection

Powered at 12V DC from the RAK through its RJ45 connection. It communicates by FM radio at 433.9MHz. Rako's RX-LINK instruction manual covers installation.

Fitting

It measures 172 x 46 x 40mm, weighs 165g and operates from +2°C to +40°C.

Questions

How many RAK8 units can one Rako RX-LINK serve?

Two, giving up to 16 circuits.

Does the RX-LINK need a power supply?

No. It is powered from the RAK.

Does the RX-LINK need programming?

Yes. It must be configured in RASOFT Pro.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
