Rako RACUB2L
Rako RACUB2L
Rako RACUB2L

Rako

Rako RACUB2L

SKU RACUB2L

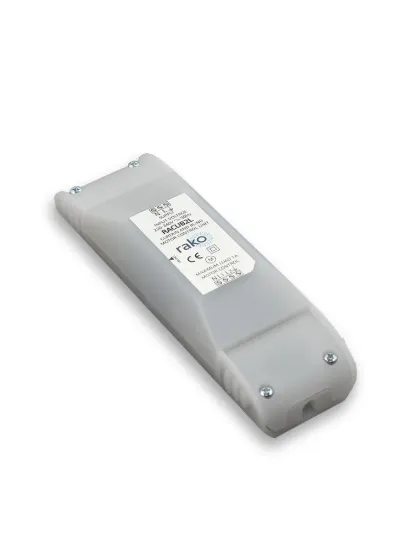

The Rako RACUB2L is a wireless controller for mains-voltage curtain, blind and screen motors in a Rako wireless (Rakom RF) system. It suits motors with Neutral, Live 1, Live 2 and Earth connections, switching direction through two relays. Rako rates its outputs at 1A, from a 230V AC supply. Add an RK-HUB to control blinds from the Rako app.

Manufacturer: Rako
£238.80 inc VAT

Key features

Wireless
  • Open, stop and close for motorised curtains or blinds
  • Two-lane motor control
  • Same keypad that runs the lights
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RACUB2L

Suits motors with Neutral, Live 1, Live 2 and Earth connections, switching direction through two relays

Curtains and blinds

Open, stop and close from the Rako keypad, in the same scene as the lights.

Wireless

Fits a wireless Rako system. The keypad in the room talks to this module over Rakom RF.

One plate

The wall plate already on the lights can recall a scene that also draws the blinds.

What the Rako RACUB2L is

The Rako RACUB2L is a dual-relay switching module for mains curtain and blind motors. For 12V DC or dry-contact motors choose the RACUB; for 24V DC polarity-reversing motors choose the RACUB24DC.

Where it sits in a Rako system

The RACUB2L is controlled by Rako wireless commands from keypads such as the RK-EOS-6, and works with the Rako app through an RK-HUB. Basic set-up can be done from a Rako keypad; full customisation, including relay time-out and latching or momentary switching, uses RASOFT Pro with a RAMPI or RK-HUB. See all Rako wireless blinds and curtains.

Ratings and limits

  • Relay outputs: 1A maximum
  • Motors: 230V AC
  • Latching or momentary switching, customisable time-out

Power and connection

It runs from a 230V AC supply. It communicates by FM radio at 433.9MHz and takes cable up to 1.5mm² stranded or 2.5mm² solid. Rako's RACUB2L instruction manual covers installation, which should be done by a competent electrician.

Fitting

An in-line module measuring 160 x 50 x 36mm and weighing 240g. It operates from +2°C to +40°C.

Guide: Rako curtains and blinds: control them from the same keypad as the lights

Questions

Which motors suit the Rako RACUB2L?

230V AC curtain, blind and screen motors with Neutral, Live 1, Live 2 and Earth connections. Check the motor's documentation.

Can the RACUB2L drive a 24V motor?

No. Use the RACUB24DC for 24V DC motors.

Does the Rako RACUB2L need a hub?

Not for keypad control. An RK-HUB is needed for the Rako app, voice control and timed events.
