Rako RACUB24DC
Rako RACUB24DC
Rako RACUB24DC

Rako

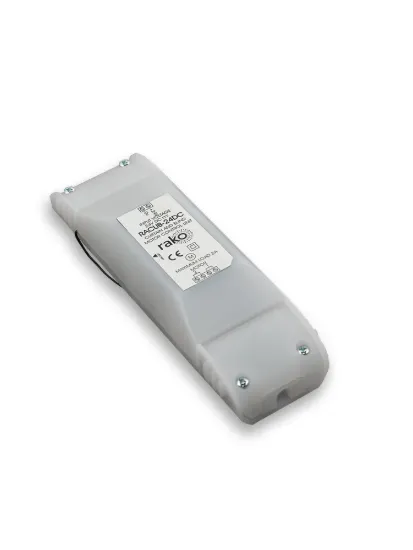

Rako RACUB24DC

SKU RACUB24DC

The Rako RACUB24DC is a wireless controller for 24V DC curtain, blind and screen motors in a Rako wireless (Rakom RF) system. It drives two-wire motors by reversing polarity through twin relays. Rako rates its outputs at 2A, and it runs from a 24V DC supply. Add an RK-HUB to control blinds from the Rako app.

Manufacturer: Rako
£238.80 inc VAT

Key features

Wireless
  • Open, stop and close for motorised curtains or blinds
  • For 24 V DC motors
  • Same keypad that runs the lights
  • Wireless Rako system
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RACUB24DC

Drives two-wire motors by reversing polarity through twin relays

Curtains and blinds

Open, stop and close from the Rako keypad, in the same scene as the lights.

Wireless

Fits a wireless Rako system. The keypad in the room talks to this module over Rakom RF.

One plate

The wall plate already on the lights can recall a scene that also draws the blinds.

What the Rako RACUB24DC is

The Rako RACUB24DC is a dual-relay module that controls 24V DC motors by polarity switching. For mains motors, choose the RACUB2L; for 12V DC or dry-contact motors, the RACUB.

Where it sits in a Rako system

The RACUB24DC is controlled by Rako wireless commands from keypads such as the RK-EOS-6, and works with the Rako app through an RK-HUB. Basic set-up can be done from a Rako keypad; full customisation, including relay time-out and latching or momentary switching, uses RASOFT Pro with a RAMPI or RK-HUB. See all Rako wireless blinds and curtains.

Ratings and limits

  • Relay outputs: 2A maximum
  • Motors: 24V DC, polarity-reversing
  • Latching or momentary switching, customisable time-out

Power and connection

It runs from a 24V DC supply, which is not included. It communicates by FM radio at 433.9MHz and takes cable up to 1.5mm² stranded or 2.5mm² solid. Rako's RACUB24DC instruction manual covers installation, which should be done by a competent electrician.

Fitting

An in-line module measuring 160 x 50 x 36mm and weighing 240g. It operates from +2°C to +40°C.

Guide: Rako curtains and blinds: control them from the same keypad as the lights

Questions

Which motors suit the Rako RACUB24DC?

24V DC curtain, blind and screen motors with a two-wire, reverse-polarity connection. Check the motor's documentation.

Does the RACUB24DC need a separate power supply?

Yes. It runs from 24V DC.

Does the Rako RACUB24DC need a hub?

Not for keypad control. An RK-HUB is needed for the Rako app, voice control and timed events.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
