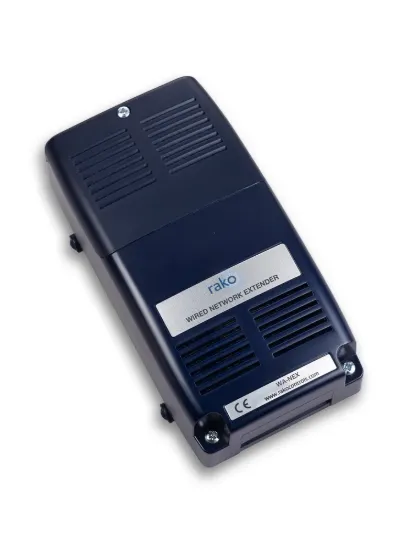

The Rako WANEX (WA-NEX) is a network extender for Rako wired (CAT5 / Rakom) systems, with two isolated connection points. It extends, links or splits wired networks that would exceed Rako's cable limits of 3000m radial or 1500m star, or where a RAK-STAR cannot be fitted. It is powered from a RAK-LINK.

Manufacturer: Rako
£324.00 inc VAT

Key features

Wireless
  • Extends or repeats the wireless Rako signal
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako WANEX

Extends, links or splits wired networks that would exceed Rako's cable limits of 3000m radial or 1500m star, or where a RAK-STAR cannot be fitted

Wireless range

Repeats Rakom RF so keypads and in-line modules still talk across a larger house or a thick floor.

With the Hub

App, voice and timers still need an RK-HUB or WK-HUB. This part keeps the system connected.

Keypads still run the room

The plate on the wall is the everyday control. This accessory sits in the background.

What the Rako WANEX is

The Rako WANEX is a wired network extender made up of two isolated connection points, local and remote. It solves cable-length and connection-point problems in larger wired installations. For a central star point, the RAK-STAR is the usual choice.

Where it sits in a Rako system

It is powered from the RAK-LINK and passes the wired network through to a further section of cabling, where wired devices such as the WK-EOS-6 connect. See all Rako wired interfaces.

Ratings and limits

  • Two isolated connection points (local and remote)
  • For networks beyond 3000m radial or 1500m star cabling
  • Cable: UTP CAT5e, CAT6, RJ11

Power and connection

Powered from the RAK-LINK through RJ11 or punch-down connection. Each side has an RJ11 port, a Krone connector and a concentric jack. It communicates over CAN. Rako's WA-NEX instruction manual covers installation.

Fitting

It measures 190 x 105 x 66mm, weighs 280g and operates from +2°C to +40°C.

Questions

When do I need a Rako WANEX?

When a wired network would exceed 3000m of radial or 1500m of star cabling, or where a RAK-STAR cannot be installed.

How is the WANEX powered?

From the RAK-LINK, over RJ11 or punch-down connection.

Is the WANEX the same as the WA-NEX?

Yes. Rako's documents use the name WA-NEX.
