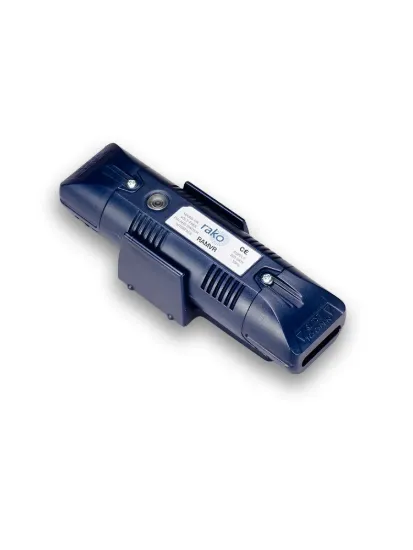

What the Rako RAMVR is
The Rako RAMVR is a Rako wireless interface module for third-party presence sensors. Where the RK-PIR is Rako's own battery sensor, the RAMVR lets an existing mains or volt-free PIR trigger Rako scenes.
Where it sits in a Rako system
It transmits Rako wireless commands to modules such as the RMT-500. It is configured in RASOFT Pro through a RAMPI or RK-HUB. Keypads can override it. See all Rako wireless interfaces.
Ratings and limits
- Inputs: mains PIR or volt-free PIR (not both together)
- Customisable auto-off time-out
- Absence detection mode
- 30-second exit delay after an off command
Power and connection
It runs from 230V AC, with screw terminals for the mains supply, a mains PIR or a volt-free PIR. It communicates by FM radio at 433.9MHz. Rako's RAMVR instruction manual covers installation.
Fitting
For a ceiling void, or central mounting on the supplied bracket. It measures 172 x 46 x 40mm, weighs 180g and operates from +2°C to +40°C.
Questions
Which sensors work with the Rako RAMVR?
Third-party mains PIRs or volt-free PIRs, but not both types at once.
Does the RAMVR support absence detection?
Yes. It can send an auto-off command when no movement is detected for the set time.
How is the RAMVR programmed?
In RASOFT Pro, through a RAMPI or Hub.
