What the Rako WP-CON is

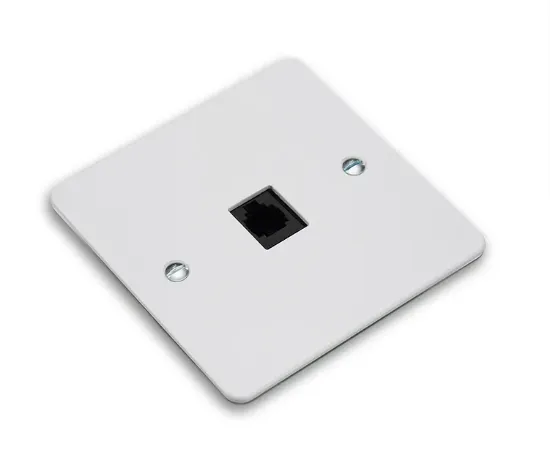

The Rako WP-CON is a back-box RJ11 to punch-down connector on a standard 86mm plate. It gives a wall socket where a Rako device, such as a WK-HUB, can plug into the wired network.
Where it sits in a Rako system
It joins the wired network cabling run back to a RAK-LINK or RAK-STAR. See all Rako wired interfaces.
Ratings and limits
- 8-way Krone connector and RJ11 port
- Cable: UTP CAT5e, CAT6, RJ11
Power and connection
Carries 12-18V DC from the Rako wired network; communicates over CAN. Rako's WP-CON instruction manual covers installation.
Fitting
Mounts on a standard 86mm plate with two screw fixings, in a UK single back box at least 35mm deep (47mm advised). It measures 86 x 86 x 25mm, weighs 30g and operates from +2°C to +40°C.
Questions
What is the Rako WP-CON used for?
Giving an RJ11 wall socket so Rako devices can plug into the wired network.
What back box does the WP-CON need?
A UK single back box at least 35mm deep; Rako advises 47mm.
What is the difference between the WP-CON and the WK-CONNECT?
The WP-CON is a wall plate in a back box; the WK-CONNECT is an in-ceiling unit.
