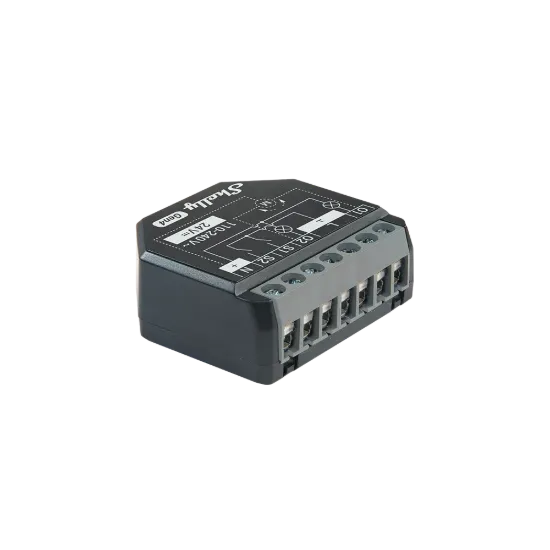

Shelly 2PM Gen4

SKU 3800238070748

For two lights, or one blind, from a single wall box. The Shelly 2PM Gen4 switches up to 10 A on each channel, and 16 A in total.

Manufacturer: Shelly
£33.98 inc VAT

Key features

Wi-Fi Bluetooth Zigbee
  • Two-channel control for two lights or loads
  • Measures power and energy on the circuit
  • Switches loads up to 10 A
  • Wi-Fi, Bluetooth and Zigbee connectivity
  • Powered from 110 - 240 V~ / 24 VDC ±10%
  • Up to 20 schedules, plus scripting, MQTT and webhooks
  • Overheating protection
  • Fits in a wall box behind the switch
  • Set up and run from the Shelly Smart Control app
Product details Manual

Why Shelly 2PM Gen4

The Shelly 2PM Gen4 switches up to 10 A on each channel, and 16 A in total

Two channels

Controls two lights or loads separately from one device, so one module covers two circuits.

Energy metering

Reads the power drawn on the circuit and keeps the energy total, so the app shows what each load uses.

Load rating

Switches loads up to 10 A. The manual lists the limits for lamps, motors and other load types.

Connectivity

Connects over Wi-Fi, Bluetooth and Zigbee. Setup runs from the phone, then the device joins the home network.

Local automation

Up to 20 schedules, scripting, MQTT and webhooks run on the device itself, so routines keep working if the internet drops.

Built-in protection

Overheating protection cuts the output before the device or the load is put at risk.

What the Shelly 2PM Gen4 does

The Shelly 2PM Gen4 is a two-channel relay with power metering, for two circuits or one motorised blind or shutter.

Good for:

  • Two lighting circuits from one wall box
  • Motorised blinds and shutters in cover mode
  • Measuring power on each channel

Key facts

  • Switching (AC): 10 A (per channel), 16 A (total), 18 A (total peak)
  • Power supply: 110 - 240 V~ / 24 VDC ±10%
  • Size: 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch

Works with

Runs from the Shelly Smart Control app and works with Amazon Alexa, Google Home and Home Assistant, with no hub needed. Shelly Gen4 devices also support Matter, which works with Apple Home. Connectivity: Wi-Fi, Bluetooth, Zigbee, Matter.

Pairs well with

Also consider

Browse Relays & dimmers, all Shelly and what Shelly is.

Questions

Do I need a hub for the Shelly 2PM Gen4?

No. It connects to your home Wi-Fi directly.

Should an electrician fit it?

We recommend a qualified electrician for anything connected to mains wiring. The manual is linked on this page.

Will the Shelly 2PM Gen4 fit in a UK back box?

The body measures 37 x 42 x 16 mm. Whether it fits depends on the box depth and the cables already in it.

What's the maximum load?

It switches up to 10 A on each channel, and 16 A in total.
