Rako

Rako RLC enclosure

SKU RLC-020

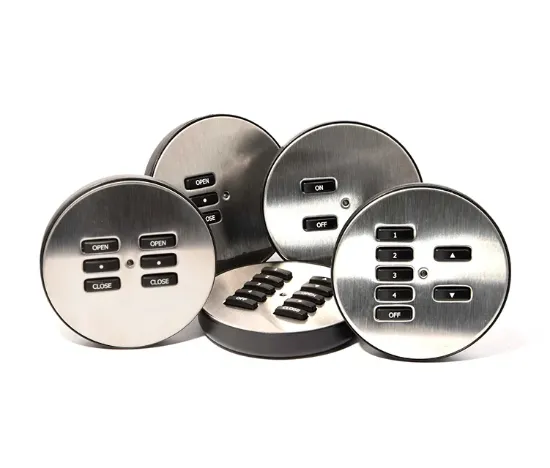

The Rako RLC enclosure is a brushed stainless steel handheld cover plate kit that turns a Rako Classic RCM or RNC wireless keypad module into a portable remote. Choose the version to match the keypad: 2, 3, 6, 7 or 10 buttons (RLC-020 to RLC-100). It is 78mm across and 15mm deep. See the Rako Classic range.

Manufacturer: Rako
*
£45.60 inc VAT

Key features

Wireless
  • Handheld cover for a Classic wireless keypad
  • 2, 3, 6, 7 or 10 button versions
  • Brushed stainless steel, 78 mm across
  • Run from the keypad; the Rako app needs an RK-HUB or WK-HUB
Product details Manual
Got a Rako project? Need commissioning, a design, or help choosing wired, wireless or hybrid? Tell us about the house.

Why Rako RLC enclosure

Choose the version to match the keypad: 2, 3, 6, 7 or 10 buttons (RLC-020 to RLC-100)

Handheld

A portable cover plate kit that turns an RCM or RNC wireless keypad into a remote, instead of a wall plate.

Wireless

The keypad module inside talks over Rakom RF. Choose the RLC that matches that module's button count.

Match the keypad

RLC-020, 030, 060, 070 or 100. The keypad module is bought separately.

What the Rako RLC enclosure is

The Rako RLC-xxx enclosure is a portable alternative to wall-mounted plate kits. It holds a single RCM or RNC wireless keypad module with a standard button layout for lighting, curtains and blinds, or both. For wall use, see the RVF-070-W plate kit.

Where it sits in a Rako system

Fitted with the matching keypad module, it works as a handheld Rako wireless transmitter. For a tabletop keypad instead, see the RCE-WDGE.

Ratings and limits

  • RLC-020: RCM-020, RNC-020
  • RLC-030: RCM-030
  • RLC-060: RCM-060
  • RLC-070: RCM-070, RNC-070, RCM-071, RCM-072, RCM-Audio
  • RLC-100: RCM-100, RNC-100, RCM-101, RCM-102, RCM-103

Fitting

Brushed stainless steel, 78mm in diameter and 15mm deep. Custom button etching is available from Rako. Rako's RLC-xxx instruction manual covers assembly.

Questions

Which RLC do I need?

The one matching your keypad's button count; for example, an RCM-070 needs the RLC-070.

Is a keypad included with the Rako RLC enclosure?

No. It is a cover plate kit for an RCM or RNC module bought separately.

What is the RLC made from?

Brushed stainless steel.

Rako app

Scenes from the keypad, and from the phone

This product sits in a Rako system. The keypad on the wall runs the room. With an RK-HUB or WK-HUB, the same scenes also run from the free Rako app.

  • Room scenes from the keypad on the wall
  • App control once an RK-HUB or WK-HUB is on the network
  • Voice, timers and holiday mode from the Hub
Download on theApp Store Get it onGoogle Play

The Rako app is published by Rako, and needs an RK-HUB or WK-HUB with firmware 3.7.6 or later.
